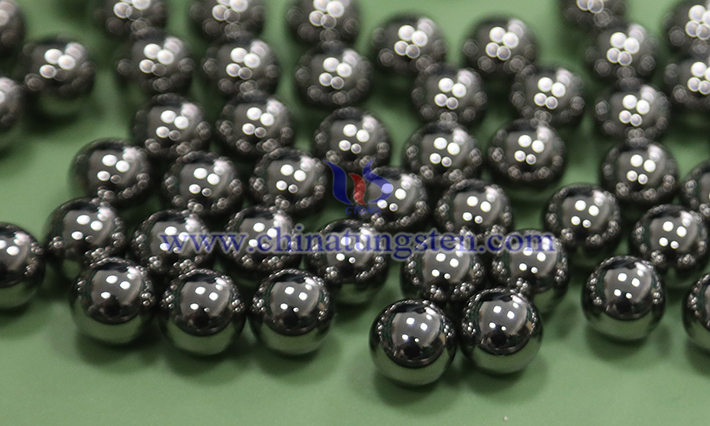

Tungsten carbide balls, known for their high hardness, wear resistance, and excellent mechanical properties, are widely used in bearings, valves, grinding media, and other fields. Surface quality directly affects their performance and lifespan, making surface quality control a critical aspect of the production process. Effective control involves material selection, processing techniques, inspection methods, and quality management.
1. Material Selection and Composition Control
Tungsten carbide balls are typically made by sintering tungsten carbide (WC) powder with binders such as cobalt (Co). The quality of the raw materials is crucial for surface performance. High-purity raw powders with uniform particle sizes and low impurity content are essential. Strict control of Co content and WC grain size during production ensures a high-density, uniform structure after sintering, minimizing surface defects such as pores and cracks. Using high-purity materials and precise composition ratios effectively enhances surface quality.
2. Optimization of Processing Techniques
The surface quality of tungsten carbide balls is primarily controlled through forming, sintering, and finishing processes.
Forming: Cold isostatic pressing or die pressing ensures uniform green body density, reducing surface irregularities during subsequent processing.
Sintering: Vacuum sintering or hot isostatic pressing (HIP) eliminates internal pores and enhances surface density. Precise control of sintering temperature and holding time is necessary to prevent excessive grain growth or surface oxidation.
Finishing: Precision grinding and polishing processes use multi-stage grinding heads and suitable abrasives (e.g., diamond paste) to gradually reduce surface roughness. During grinding, parameters such as pressure, rotation speed, and coolant use must be controlled to avoid surface scratches or burns. The surface roughness (Ra) after polishing typically needs to reach 0.01–0.02μm to meet high-precision requirements.
3. Surface Quality Inspection
Surface quality inspection is critical to ensuring the performance of tungsten carbide balls. Common methods include:
Optical Microscopy and SEM: Used to observe microscopic surface features and detect defects such as scratches, cracks, or pores.
Surface Roughness Tester: Measures parameters like Ra and Rz to ensure surface finish meets standards.
Roundness Tester: Checks sphericity deviations to ensure geometric accuracy.
Non-Destructive Testing: Techniques like ultrasonic or X-ray testing identify internal defects that may affect surface quality.
Inspections should cover the entire production process, providing timely feedback for process adjustments.
4. Quality Management System
A robust quality management system is essential for surface quality control. Adopting standards like ISO 9001 and establishing strict process specifications and inspection procedures are key. Full-process monitoring, from raw material intake to finished product delivery, involves recording parameters at each stage. Implementing Statistical Process Control (SPC) allows for the analysis of processing data to detect deviations and adjust processes promptly. Additionally, regular training for operators enhances their process execution skills, reducing surface defects caused by human error.
