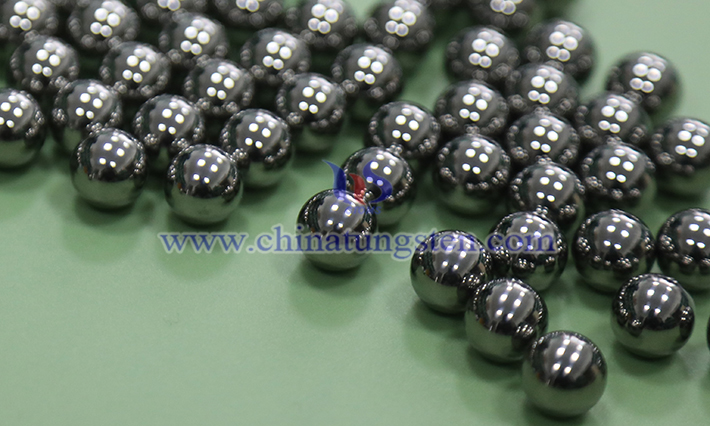

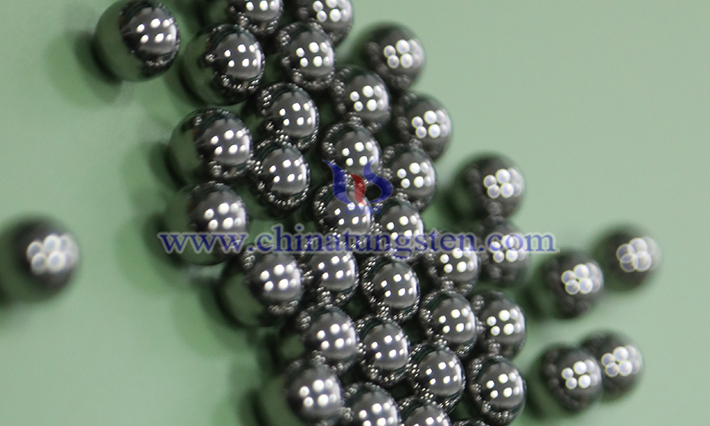

The polishing process for tungsten carbide balls is mainly used to enhance their surface finish, dimensional accuracy, and sphericity. It is typically applied in fields such as precision bearings, valves, and instruments. The following provides a detailed explanation of the tungsten carbide ball polishing process, covering the main steps, methods, and precautions:
1. Process Overview
Tungsten carbide (typically based on tungsten carbide WC, combined with metals such as Co and Ni) has high hardness, excellent wear resistance, and corrosion resistance. However, its surface may have minor defects (such as scratches and pits) after machining. The polishing process removes surface defects through mechanical, chemical, or composite methods to improve surface quality.
2. Main Polishing Methods
The polishing of tungsten carbide balls typically employs the following processes, with the specific choice depending on the ball's size, accuracy requirements, and production efficiency:
(1) Mechanical Polishing
Principle: Using abrasives (such as diamond powder or alumina) in polishing equipment to perform micro-cutting or friction on the tungsten carbide ball surface, removing surface irregularities.
Equipment:
Planetary polishing machine: The balls move between multiple rotating discs for uniform force application.
V-groove polishing machine: Balls roll in V-shaped grooves combined with abrasives for polishing.
Vibratory polishing machine: Achieves interaction between balls and abrasives through vibration.
Process Parameters:
Abrasive grit size: Typically from coarse grinding to fine grinding.
Polishing time: Depending on the surface roughness requirements, a single polishing session may last from several hours to tens of hours.
Pressure: Must be controlled within an appropriate range to avoid ball deformation or surface damage.
Advantages: Lower cost, suitable for large-scale production.
Disadvantages: Lower efficiency, difficult to completely eliminate fine scratches.
(2) Chemical Mechanical Polishing (CMP)
Principle: Combines chemical etching and mechanical grinding, using chemical components in the polishing slurry (such as oxidants and acid-base solutions) to soften the surface, followed by abrasive removal of material.
Process Flow:
Prepare polishing slurry (e.g., acidic solution containing H?O? and FeSO?).
Place tungsten carbide balls in the polishing pad, add polishing slurry and abrasives (such as SiO? or Al?O?).
Control rotation speed, pressure, and polishing time.
Advantages: Achieves extremely high surface finish, suitable for high-precision requirements.
Disadvantages: Complex equipment, precise control of polishing slurry formulation required, higher cost.
(3) Magnetorheological Finishing (MRF)
Principle: Uses magnetorheological fluid (a magnetic fluid containing abrasives) to form a flexible polishing head under a magnetic field, performing micro-material removal on the ball surface.
Features:
Suitable for complex shapes and ultra-precision polishing.
Can achieve nanoscale surface roughness.
Applications: Commonly used for high-precision tungsten carbide balls, such as those in aerospace.
Disadvantages: Expensive equipment, complex process.
(4) Ultrasonic Polishing
Principle: Drives abrasives to impact the ball surface through ultrasonic vibration, combined with polishing slurry to remove micro-amounts of material.
Advantages: Suitable for small-batch and complex surface polishing with minimal damage.
Disadvantages: Lower efficiency, high equipment maintenance costs.
3. Polishing Process Flow
Pretreatment:
Cleaning: Ultrasonic cleaning to remove oil stains and impurities.
Rough Grinding: Use coarser grit abrasives to remove obvious defects.
Fine Polishing:
Select finer grit abrasives to progressively improve surface finish.
Adjust equipment parameters (such as rotation speed and pressure) to control polishing results.
Cleaning and Inspection:
Clean again after polishing to remove residual abrasives and polishing slurry.
Use surface roughness testers, roundness testers, etc., to inspect ball surface quality and dimensional accuracy.
Post-Treatment (Optional):
Apply surface coatings (such as DLC coating) to further enhance wear resistance or corrosion resistance.
4. Key Process Parameters
Abrasive Selection: Diamond powder is the preferred choice due to its high hardness, suitable for tungsten carbide; alumina and silicon carbide are used in cost-sensitive scenarios.
Polishing Slurry: pH must be adjusted based on material composition (e.g., WC-Co) to avoid excessive corrosion.
Equipment Rotation Speed and Pressure: Excessive levels may cause surface burns or cracks; insufficient levels reduce efficiency.
Environmental Control: The polishing process should be conducted in a constant temperature and humidity environment to avoid thermal deformation.
5. Precautions
Material Characteristics: The composition of tungsten carbide (e.g., Co content) affects polishing results, requiring targeted process adjustments.
Surface Damage Control: Avoid over-polishing that leads to subsurface cracks.
Environmental and Safety: Properly handle polishing slurry and abrasive waste to prevent environmental pollution.
Quality Inspection: After polishing, check surface roughness (Ra), roundness, and dimensional deviation to ensure compliance with standards.
